Crushers

ABHISHEK ENTERPRISES Crushers have been designed to fulfil the various requirements of stone quarries, mining facilities and industrial facilities. We offer a variety of sizes and designs which are used to materials depending on capacity, hardness and size of the material

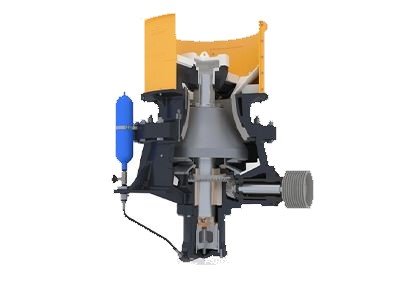

Cone Crusher

Our cone crushers are designed with a unique combination of high crushing force, high eccentric throw to deliver top performance to help maximise your return on investment. Rugged and reliable, and designed to achieve outstanding results, our cone crushers feature a steep crushing chamber angle, a large crushing stroke, and optimum speed to deliver a finer product through increased inter-particle comminution.

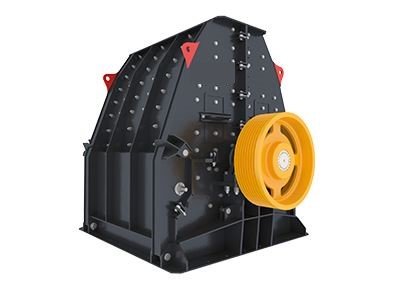

Hammer Crusher

The material passes through the feed opening into the striking arc of the rotating hammers. The hammers fling the material against the grinding ledges of the grinding wall, from where it rebounds back against the hammers. The material flow is spread over the following discharge grates, where the product granulometry is separated and discharged through the grates. Any remaining material continues to be processed until it can pass through the grate gap. The grate bar gap spacing determines the final product size. To influence the product size, the circumferential speed of the rotor can be varied.

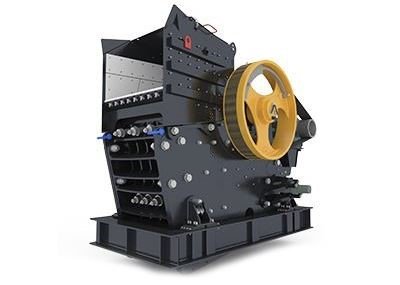

Jaw Crusher

Jaw crushers reduce large rocks or ore by means of compression. Mechanical pressure is applied using the crusher’s two jaws; one is fixed while the other makes an eccentric movement. There are also primary and secondary types of these crushers. Jaw crushers are one of the most commonly preferred crushers due to their ability to crush all kinds of materials of any hardness, as well as their low-cost operation and easy maintenance.

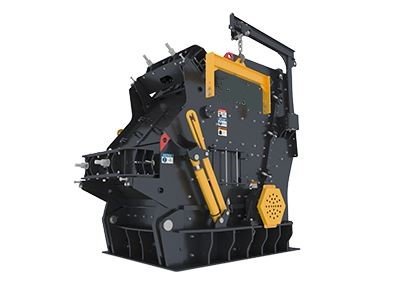

Primary Impact Crusher

Our Primary Impact Crushers, offering high reduction ratios, reduced power consumption, easier and safer maintenance are the solution for operating conditions where output and productivity demands are increasingly stringent.

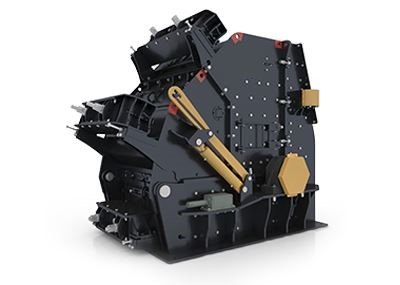

Secondary Impact Crusher

MSI Series Secondary Impact Crusher is ideally suited to crush soft to medium hard materials down to a highly cubical, well graded product size of 0-80 mm in a single pass. Although this crusher is normally offered within a plant where tertiary crushing is also present, due to its high reduction ratio, the need for tertiary crushing can be eliminated.

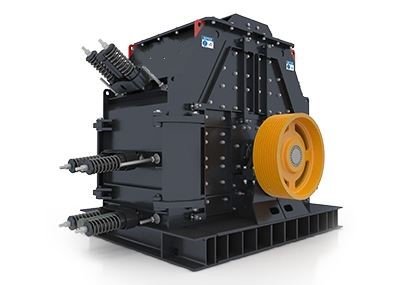

Tertiary Impact Crusher

Tertiary impact crushers are manufactured with different rotor sizes and the required motor power is selected according to the application. The strength of Tertiary impact crushers makes them ideal for every kind of application in many different configurations. Tertiary impact crushers have demonstrated their effectiveness in many missions from crushing low abrasive materials to industrial applications and recycling.

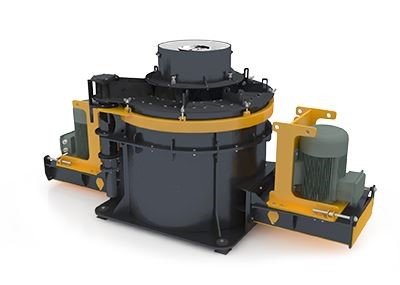

Vertical Shaft Impact Crusher

Vertical Shaft Impact Crushers are specifically designed for shaping the material after a cone crusher. Rock on rock designation means a few and inexpensive wear parts compared to other alternatives. Adjustable speed and adjustable cascade increases control on the final product.

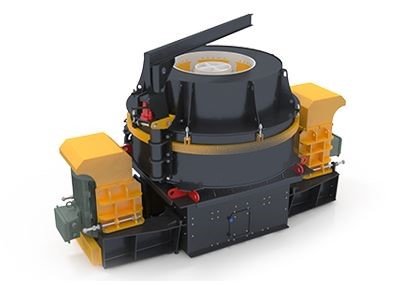

Vertical Shaft Impact Crusher

These vertical shaft impact crushers use high-speed rotor or heavy duty open tables. These crushers are offered in a variety of enclosed rotor or open table configurations and are convertible between three styles of crushing chamber designs for maximum flexibility. Configurations options include enclosed rotor and rock shelf (ROR), enclosed rotor and anvil ring (ROS) and open table rotor and anvil ring (SOS). This maximizes flexibility and allows the crusher to be configured as needed with the highest performance possible. This modular design offers maximum application versatility.
